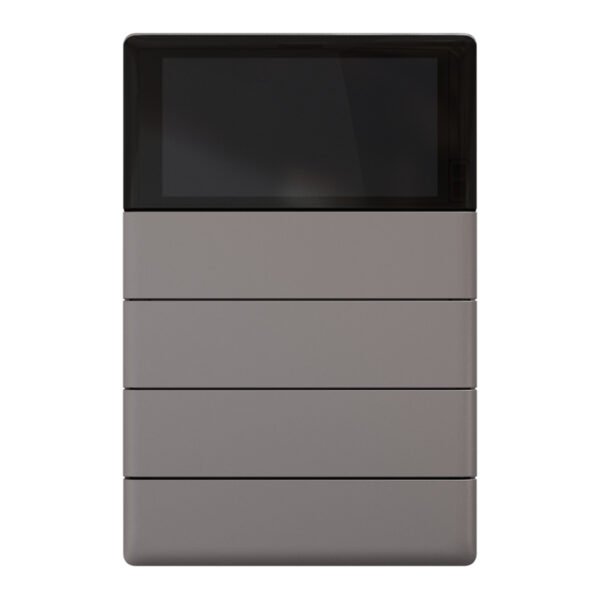

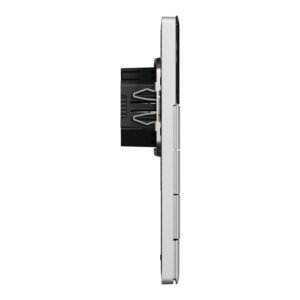

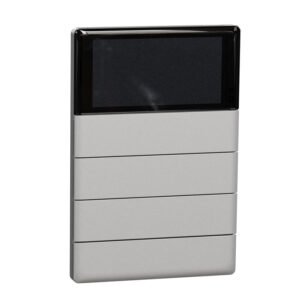

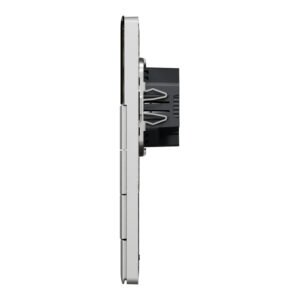

NP16214_01MS Schneider Unica KNX push-button, 8 key plus thermomstat
Unica KNX push button is programmable, with integratedbus coupling unit. The device is connected to the bus line with a bus connecting unit. You can commission different functions for each button, e.g. switching, blind or scene retrieval.The icons are changeable per different requirements.
Push-button with thermostat, display and 8 operating buttons with status indicators. With an integrated temperature sensor for temperature measurement. The thermostats supports Fan Coil Units (FCU), Variable Refrigerant Flow systems (VRF), floor heating systems and ventilation.
The display shows all relevant information for room temperature control e.g. the actual temperature, heating/cooling status, ventilation, …
The inscription of the keys only becomes visible via the backlit symbols following activation.
For this, you can use the enclosed prefabricated foils or the individual symbols with various motifs. Cool white and warm white LEDs show status, the brightness can be defined according to normal and night mode.
NP16214_01MS Schneider KNX push-button ETS device functions:
■ Display settings: temperature unit, brightness level, standby adjustment
■ Behavior and brightness of the status indicators
■ Night mode: LEDs light up with reduced brightness
■ Proximity function: The LEDs are only activated and the functions only become visible when approached.
■ Temperature sensor: Calibration and sending behavior

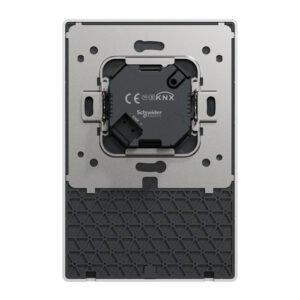

With integrated bus coupler. The bus is connected using a bus connecting terminal.
NP16214_01MS Schneider KNX push-button software functions:
2 programming options:
■ Express settings: Calls up a pre-set configuration
■ Extended settings: Individual configuration
Express settings: Power on/off of the device, control mode/operation mode (to call with short/long button press), Fan speed, Temperature +/-, Function page, Switching, toggling, dimming (single/dual-surface), blind (single/dual-surface), scenes.
Extended settings: Switching, dimming, value output, scene control (recal/store a scene), blind, shift register (stepwise, without steps), RGB lighting (RGB, RGBW), multiple operation in which you can define various functions manually (4 objects – on/off, up/down, recall scene, store scene, percentatge, unsigned value), delay mode, color temperature control. For all
function a distinction can be made between short and long operation.
HVAC settings: FCU or VRF controller, floor heating and ventilation.
FCU: Heating and/or cooling mode, room temperature can be taken as reference from the internal sensor, an external sensor or a combination of both. Implementation of a window contact. Setpoint adjustment.
VRF: Heating and/or cooling mode, dehumidifaication mode, fan mode, auto mode, fan speed adjustment, setpoint.
Floor heating: Setpoint, PI control, PWM or switching 2-point feedback control, setpoint adjustment
General: Scene group, logic function (AND; OR, XOR, threshold comparator, format converter), indication behaviors, locking function, support of CO2 sensor, monitoring of further sensors.
NP16214_01MS Schneider KNX push-button Specifications
Version : Metalic silver
Art. no : NP16214_01MS
Range of product : KNX
Power supply from KNX: push-button: DC 24V, approx.18mA；
thermostat: DC 24V, approx. 22mA
Connection : KNX bus connecting connector
IP protection rating : IP 20
Operating temperature ：-5 °C – +45 °C
Relative humidity: 10% – 93% no condensation
Product dimensions: WxHxD: 86x129x29mm
