MTN680204 Schneider SpaceLogic KNX Coupler DIN Rail
Back to products

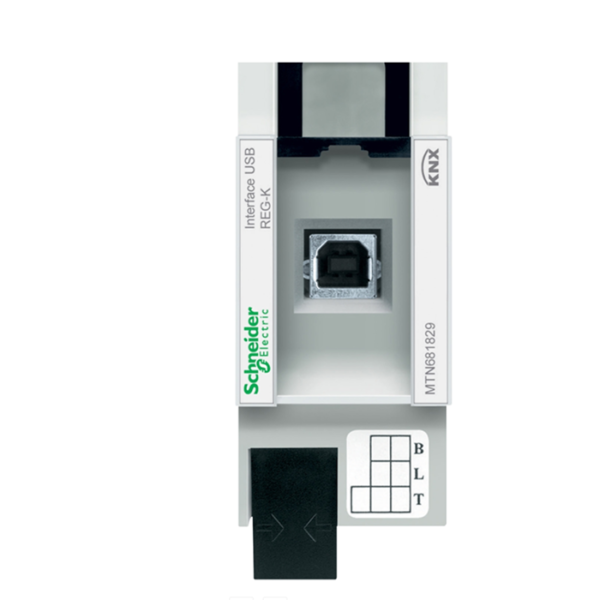

MTN681829 Schneider SpaceLogic USB interface REG-K DIN Rail

Description

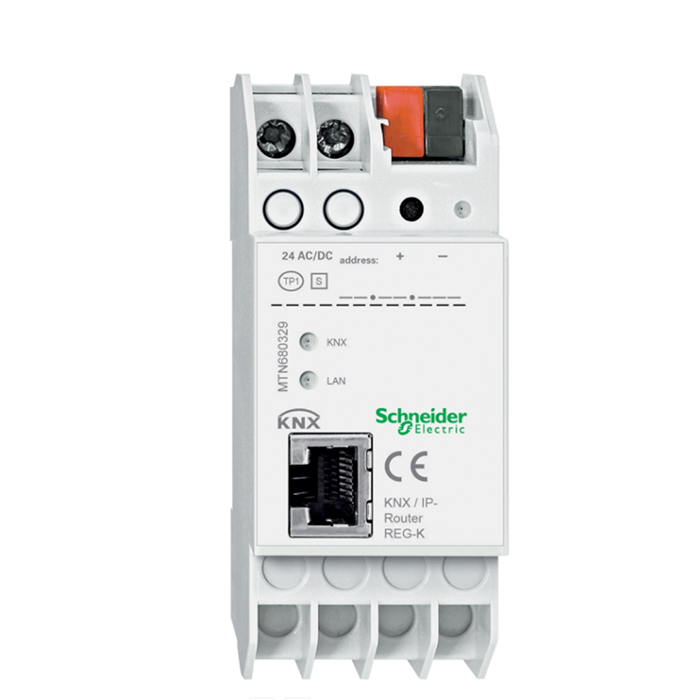

MTN680329 Schneider KNX/IP router REG-K

The KNX/IP router enables telegrams to be forwarded between different lines via LAN (IP) as a rapid backbone. The device can additionally serve as a programming interface in order to connect a PC with the KNX bus (e.g. for ETS programming with suitable ETS).
The IP address can be assigned dynamically via a DHCP server or via manual configuration (ETS parameter). The device operates in accordance with the KNXnet/IP specification using Core, device management, tunnelling and routing.
The KNX/IP router forwards telegrams in both directions whilst taking a filter table into account and can buffer up to 150 telegrams.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

MTN680329 Specifications

Version : white
Art. no : MTN680329
Range of product:KNX
Device width: 2 modules = approx. 36 mm
In KNX, to be completed with: SpaceLogic KNX Power supply REG, DC 24 V/0,4 A MTN693003
SpaceLogic KNX Power supply REG, AC 24 V/1 A MTN663529
Also alternatively Power over Ethernet (PoE).

Note: With version 0C and higher, a total of up to 5 simultaneous connections is supported.

Contents: With bus connecting terminal.

MTN680329 Schneider KNX/IP router REG-K

MTN680329 Schneider KNX/IP router is a bus device in the Schneider KNX intelligent lighting control system. Schneider KNX intelligent lighting control system consists of three parts: execution devices, input and output devices, and bus devices.
