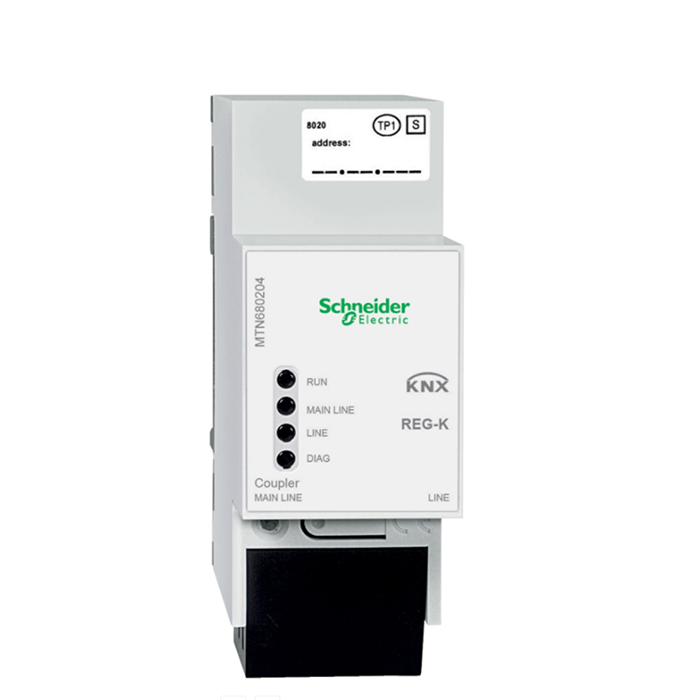

MTN680204 Schneider SpaceLogic KNX Coupler DIN Rail
For logical connection and electrical isolation of lines and areas.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN680204 Schneider KNX software functions:
The device can be used as a backbone / line coupler or as a repeater for forming line segments in existing or new KNX systems. The function as a coupler or repeater can be parameterised.
Functions as coupler：
Use as a backbone or line coupler depending on the physical address. Reduction of the bus load through the filter function (filter table). Support of the full address area (Group 0-31) with
filter function. Forwarding of physically addressed telegrams (line => main line, main line => line) can be parameterised. Forwarding of group telegrams (line => main line, main line =>
line) can be parameterised. Telegram repetitions in the event of transmission errors can be set separately for group telegrams, broadcast telegrams and physically addressed telegrams.
Telegram confirmation for group telegrams and physically addressed telegrams can be parameterised separately.
Functions as repeater：
Expansion of a line to max. 4 line segments with up to 64 participants each (incl. line coupler or repeater). Telegram repetitions in the event of transmission errors can be set separately for group telegrams, broadcast telegrams and physically addressed telegrams. With repeaters, the telegrams are always forwarded.
MTN680204 Specifications
Version : white
Art. no : MTN680204
Range of product:KNX
Device width: 2 modules = approx. 36 mm
Note: With the coupler/repeater 7116/1.1 application, the entire group address range from 0 to 31 can be used for the filter function of the coupler (support for extended group addresses).
This application requires ETS 4.1 or higher.
