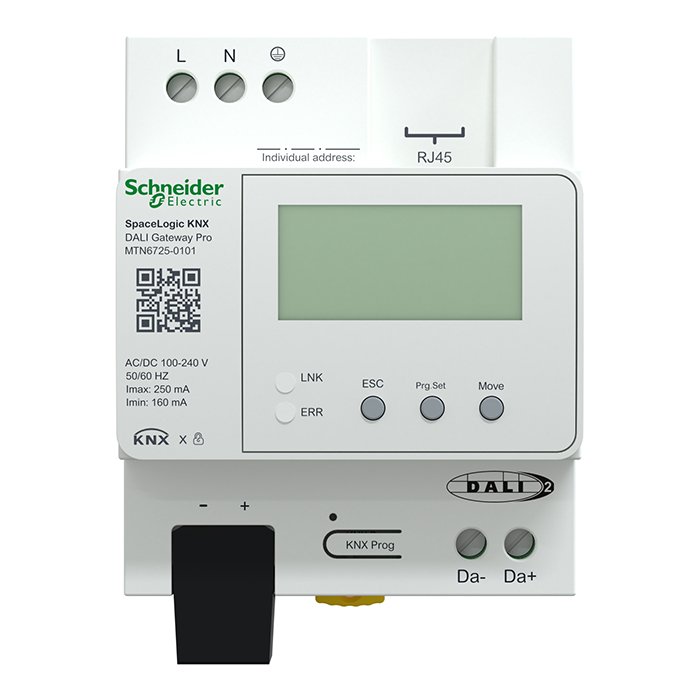

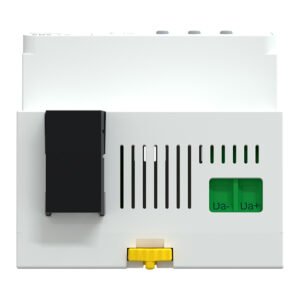

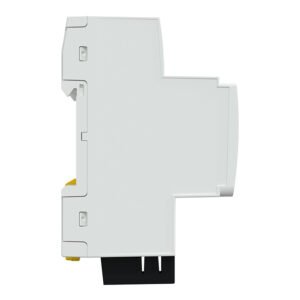

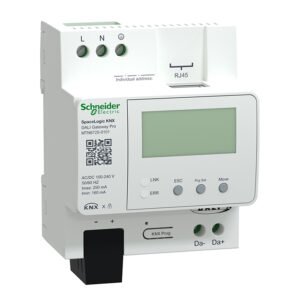

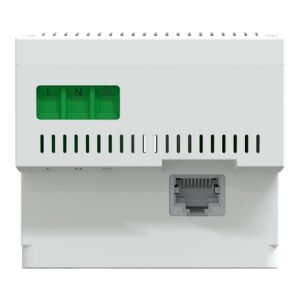

MTN6725-0101 Schneider KNX DALI gateway Dimmer actuator Description：

The SpaceLogic KNX DALI Gateway Pro controls electronic ballasts with DALI interface via the KNX installation bus The gateway is DALI 2.0 multi-master certified The gateway supports KNX longframe communication and is compatible with KNX Security telegram/devices and can be enable in the ETS 5 software In addition access to the device itself (e.g. for a download) is protected by KNX Security

MTN6725-0101 Schneider KNX DALI gateway Pro dimming module Functions:

■ Two separate user profiles with their own password for IP-webserver
■ Effect module with 16 effects and a total of up to 500 commands
■ Configuring: scenes, effects, service, maintenance, burn-in, operating hours
■ Fast Firmware upgrade possible via IP portOperating: device, ECGs, groups and broadcast
■ Colour control via KNX for broadcast and groups
■ Displays: Status and error messages
■ DT8-Colour control on the DALI side, up to 16 colour templates with up to 300 commands basing on a weekly timer
■ DALI-scenes with brightness and colour values
■ Scene number 1-64 can be flexible distributed over several devices
■ Tunable white control to improve the environment for human beings. Colour control i.e. product presentation, advertising
■ Possibility to lock the IP-port
■ Possibility to access as User or Admin the web server
■ Flexible post installation and a DCA with im- and export for DALI configuration
■ Possibility to save ECG StandBy energy of DALI groups if switched OFF

MTN6725-0101 Schneider KNX DALI gateway KNX software functions:

Switching, dimming and value object per group or ECG. Staircase timer function, status objects, delays between status feedbacks. Detailed error messages per EB and group. Test of DALI ECGs for emergency lighting with central battery or built-in battery with selectable test intervals with old or new format. Parallel broadcast triggering of all ECGs, switch-on/switch-off and colour control. Dimming speeds for relative dimming and dimming values. Dimming value max./min. Various modes (normal, permanent, night, panic). Operating hours counter and automatic burn-in per ECG.

MTN6725-0101 Schneider KNX DALI gateway Pro dimming module Specifications：

Colour tint : White
Bus type：KNX
Art. no : MTN6725-0001
Range of product : SpaceLogic KNX
Product or component type：Gateway
Function available：Updateable software

Mounting support：DIN rail
[Ue] rated operational voltage：100…240 V
Network frequency：50…60 Hz
Communication port protocol：DALI
Web services：HTTP server
Local signalling：LED display
Market segment：
Buildings/Commercial/Critical buildings/Lodging/hotel/School/Office/Small commercial

DALI

Outputs: 1 Output D+/D
Type: Multi-master application controller
Number of ECGs: max. 64 (DALI-1, DALI-2)
Number of sensors: max. 8 (DALI-2)
DALI voltage: typical DC 18 V, short-circuit proof, max 250 mA,basic insulation (no SELV)
Power supply current: max. 250 mA, guaranteed:160 mA
Shutdown delay: 600 ms after DALI short-circuit
Start-up attempt after shutdown: 5 s after short-circuit detection

Ethernet

Type: 100BaseT (100 Mbit/s)
Supports: IEEE 802.3

Type of protection: IP 20

Packing Units：
Unit Type of Package 1：PCE
Number of Units in Package 1：1
Package 1 Height：8.000 cm
Package 1 Width：12.500 cm
Package 1 Length：15.700 cm
Package 1 Weight：274.000 g

MTN6725-0101 Schneider KNX DALI gateway Dimmer actuator

MTN6725-0101 Schneider KNX DALI gateway Pro dimming module is the dimming control unit part of the execution equipment in the Schneider KNX lighting control system. Schneider KNX DALI gateway is the execution device part of the execution device in the smart lighting control system. Schneider KNX smart lighting control system consists of three parts: execution equipment, input and output equipment, and bus equipment. Execution equipment includes switch modules, curtain modules, dimming modules, etc.
