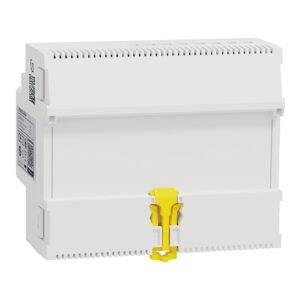

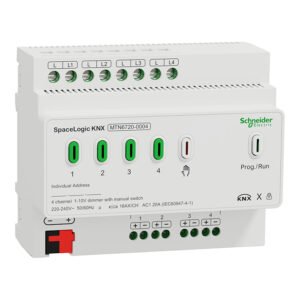

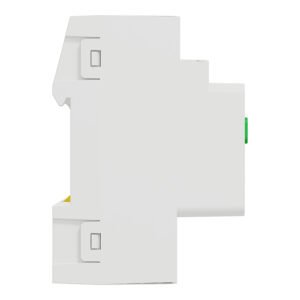

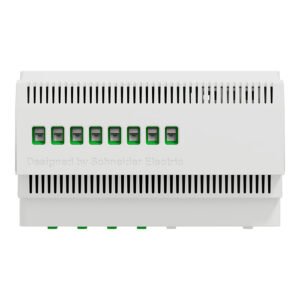

MTN6720-0004 Schneider KNX Control 4-channel dimming module with 1-10V interface Dimmer actuator
MTN620-0004 Dimmer actuator Description：
For connecting devices with 1-10 V interface to KNX. With integrated bus coupler and screw terminals (230 V) or plug-in screw terminals (1-10 V). Each individual 230 V switch output can be operated manually with a manual switch.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN6720-0004 Schneider 4-channel Dimmer actuator KNX software functions::
Different dimming curves and dimming speeds, the same dimming time, memory function, ON/OFF delay, staircase time function with/without manual OFF function, scenes (up to eight stored brightness values can be retrieved), central function, logic operation or priority control, blocking function, status feedback, behaviour on bus voltage recovery.
MTN6720-0004 Schneider 4-channel Dimmer actuator KNX Specifications：
KNX:KNX Secure
Version: light grey
KNX medium:TP1-256
Range of product:KNX
Art. no: MTN6720-0004
Mounting:Standard 35 mm rail
Nominal voltage:220-240V~ 50/60Hz
KNX power consumption: < 600 mW
Rated current:12 mA, max. 23 mA/24 V
Power supply:Bus power supply: DC 21~30 V
Minimum switching current:100 mA/12 V AC
Nominal power:
AC1 20A operation (cos q = 0.8) accord.with IEC 60947-4-1
– Incandescent lamp:3680W
-Fluorescent lamp:3680W
-Electronic transformer for extra low voltage incandescent lamps (e.g. halogen lamps):3000 VA
-Iran core transformer for extra low voltage incandescent lamps (e.g. halogen lamps):2200VA
LED lamp:650W,PF≥ 0.6; 300 W, 0.5≤PF<0.6 Capacitive loads: 16 AX,140 μF
1-10V terminal load capacity (passive): max.100mA (max50 electronic ballast or LED driver, depending on EB or driver)
