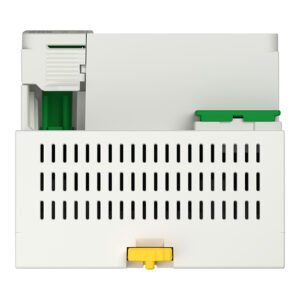

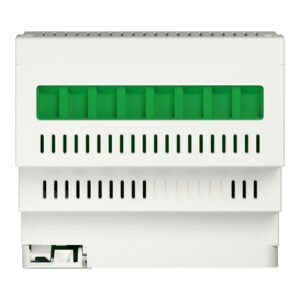

MTN6710-0002S Schneider SpaceLogic KNX Universal Dimming Master REG-K/2×230/300W Description：
This device is KNX Secure certified.
Dimming actuator with 2 channels for switching and dimming dimmable LED lamps, incandescent lamps, HV halogen lamps, LV halogen lamps using dimmable wound transformers or electronic transformers or dimmable compact fluorescent lamps.(leading and trailing-edge phases)
The Master automatically recognises the connected load. This happens in the background when switching on. Combinations of ohmic and inductive, or ohmic and capacitive loads can also be connected. Combinations of inductive and capacitive loads must not be connected. No flickering of LEDs in switched-off state.

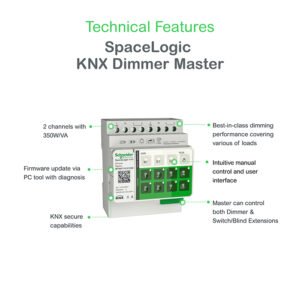

The number of dimming channels can be increased by connecting SpaceLogic KNX Universal Dimming Extensions. By connecting a SpaceLogic KNX Switch/Blind Extension, the Master’s channels can be increased with Switch/Blind channels. A maximum of 2 Extensions can be connected to the Master. The Master controls the Extensions, their power supply and communication with the bus.
With screw terminals, short-circuit, open circuit and excess temperature protection with soft start lamp start. Different phases can be connected.
All dimming outputs can be operated manually using push-buttons (On/Off, Dimm UP/Down, LED mode/Automode, One/Two button operation).
Channel status display via LEDs. A green LED indicates readiness for operation.

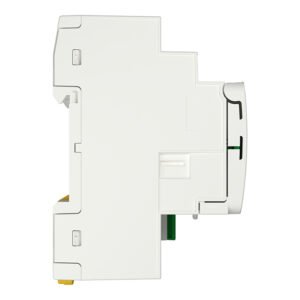

With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

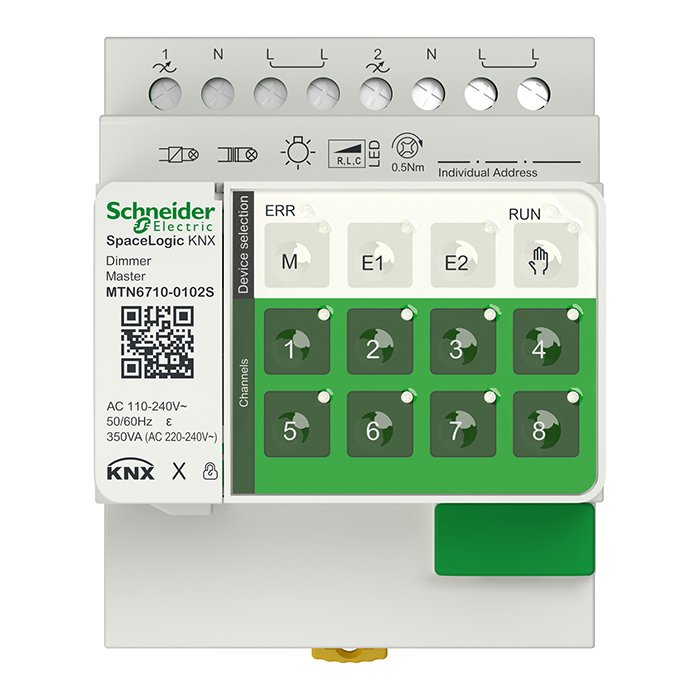

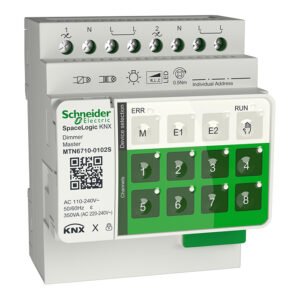

MTN6710-0102S Schneider 2-channel 350W LED universal dimming Master KNX Secure compatible:
The actuator supports KNX Data Secure to protect the device from unauthorized access from the KNX bus. If the KNX secure device is programmed via the KNX bus, this is done with encrypted telegrams.
General KNX software functions: Energy saving, device safety, device health, manual operation, PIN code for firmware update.
MTN6710-0102S Dimmer actuator functions:
Dimming operation by KNX, dimming operation by manual switch, enable/disable manual mode by bus, automatic dimming operating mode or special leading edge phase for RL LED mode, various dimming curves and dimming rates, same dimming time, minimum/maximum dimming value, starting behaviour, 50% brightness when starting ESL/CFL lamp, dimming/value object switches channel, ON/OFF delay, staircase lighting function (with/without manual OFF function, non-/retriggerable, prewarning function), scenes (up to 16 internally stored brightness values can be retrieved), priority control, disable function (behaviour of locking), operating hours, status feedback (switching state, brightness value, fault), behaviour on bus voltage recovery/download
Switch/Blind actuator functions: same as SpaceLogic KNX Switch/Blind Master; only activated when a SpaceLogic KNX Switch/Blind Extension is connected.

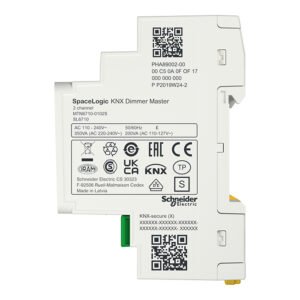

MTN6710-0102S Schneider 2-channel 350W LED universal dimming Master Specifications：
Version : light grey
Art. no : MTN6710-0002S
Range of product : KNX
Supply voltage: KNX bus, approx. 7.5 mA (Master), approx. 10 mA (Master + 1 Extension),
approx. 12.5 mA (Master + 2 Extensions)
Dimmer type: 3-wire, RC mode, RL mode, RL LED mode
Power dissipation: < 6 W
Dimmer Outputs Channels: 2 (different phases possible)
Nominal voltage: AC 110 – 240 V, 50/60 Hz
Nominal power:
220-240 V: Incandescent, HV, electronic/wounded transformators: 2x 350 W/VA
220-240 V: LED lamp in RC mode: 2x 200 W, max. 1.3 A
220-240 V: LED lamp in RL mode: 2x 60 W, max. 0.5 A
110-127 V: Incandescent, HV, electronic/wounded transformators: 2x 200 W/VA
110-127 V: LED lamp in RC mode: 2x 135 W, max. 1.5 A
110-127 V: LED lamp in RL mode: 2x 54 W, max. 0.6 A
Device width: 4 modules = approx. 72 mm
Accessories: SpaceLogic KNX Universal Dimming Extension MTN6810-0102, SpaceLogic KNX Switch/Blind Extension MTN6805-0008, SpaceLogic KNX Module Link MTN6941-0000, SpaceLogic KNX Cable Link S MTN6941-0001, SpaceLogic KNX Cable Link L MTN6941-0002.
Contents: With bus connecting terminal
