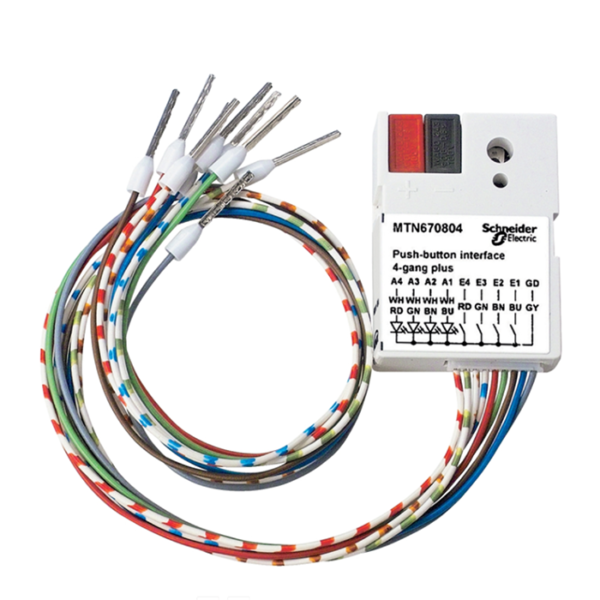

MTN670802 Schneider Push-button interface 2-gang plus Introduction：
The push-button interface for KNX has two (art. no.MTN670802) or four (art. no. MTN670804) inputs and outputs. The inputs can be used to establish binary statuses (via floating contacts) and the outputs can be used to activate control lamps (low current LEDs).
For example, by connecting floating push-buttons or switches to the inputs, you can use the KNX to perform a range of functions including switching, dimming,operating blinds and retrieving scenes, etc.
To check statuses, you can connect control lamps (low current LEDs, e.g. in the switch) to the outputs and activate them via KNX.
The contact supply voltage (SELV) for the connected buttons/switches and the control lamps comes from the push-button interface.
The push-button interface has a bus coupler.
MTN670802 KNX Push-button interface 2-gang plus Specifications：
Version : polar white
Art. no : MTN670802
Range of product : KNX
Initialisation: The push-button interface is only ready for operation after at least 17 seconds after a bus voltage failure or a bus reset.
Power supply from bus: DC 24 V/< 10 mA
Inputs Use: connection of floating
contacts Contact resistance: < 500 Ω(with closed contact)
Outputs Use: connection of low-current LEDs (< 1 mA)
Contact voltage Vk : < 3 V (SELV)
Contact current: < 0.5 mA
Ambient temperature：
Operation :-5 °C to +45 °C
Storage :-25 °C to +55 °C
Transport :-25 °C to +70 °C
Max. humidity: 93 % relative humidity, no moisture condensation
Environment: The device is designed for use at a height of up to 2000 m above sea level(MSL).
Protection class: II
Type of protection: IP 20
Connections
Inputs, outputs:
Art. no. MTN670802 each 2 and GD, single-core
Art. no. MTN670804 each 4 and GD, single-core
Maximum cable length: 7.5 m
