MTN6705-0008 Schneider SpaceLogic KNX 4-channel blind/roller shutter Switch actuator
MTN6705-0008 Schneider 4-channel blind/roller shutter Description：
This device is KNX Secure certified.
For independent control of up to 4 blind/roller shutter drives or for switching up to 8 loads via make contacts. The function of the blind or switching channels is freely configurable. All blind/switch outputs can be operated manually using push-buttons.
The number of channels can be increased by connecting SpaceLogic KNX Switch/Blind Extensions. A maximum of 2 Extensions can be connected to the Master, so up to 24 loads can be switched or 12 blind drives can be controlled. The Master controls the Extensions, their power supply and communication with the bus.
Operating elements: Push-buttons for switching to manual operation, for choosing the device to be operated (Master and Extensions) and for channel control.
With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN6705-0008 4-channel blind/roller shutter KNX Secure compatible:
The actuator supports KNX Data Secure to protect the device from unauthorized access from the KNX bus. If the KNX secure device is programmed via the KNX bus, this is done with encrypted telegrams.
MTN6705-0008 General KNX software functions:
Energy saving, device safety, device health, manual operation, PIN code for firmware update.
MTN6705-0008 Blind actuator functions:
Running time, idle time, step interval, locking function, movement range limits, weather alarm, 8-bit positioning for height and slats, scenes, status and feedback function.
MTN6705-0008 Switch actuator functions:
Operation as break contact/make contact, programmable behaviour for download, delay functions for each channel, staircase lighting function with/without manual OFF function, switch-off prewarning for staircase lighting function, scenes, central function, locking function, logic operation or priority control, switching cycle counter, status feedback function for each channel.
MTN6705-0008 KNX Specifications：
Version : light grey
Art. no : MTN6705-0008
Range of product : KNX
Supply voltage: KNX bus, approx. 6.5 mA (Master), approx. 9 mA (Master + 1 Extension), approx. 12.5 mA (Master + 2 Extensions)
Nominal voltage: AC 250 V, 50-60 Hz
Nominal current: 16 A AC-1, IEC 60947-4-1 / 10 A, IEC 60669-2-5
For each blind output:
Motor load: 1000 VA
For each switch output:Nominal load
Incandescent lamps: 2300 W
Halogen lamps: 2300 W
LED: 200 W
Capacitive load: 10 AX, max. 140 µF
Inductive load: 10 A, cosϕ = 0.6
Relay data – inrush current: max. 800 A/200 μs, max. 165 A/20 ms
Device width: 4 modules = approx. 72 mm

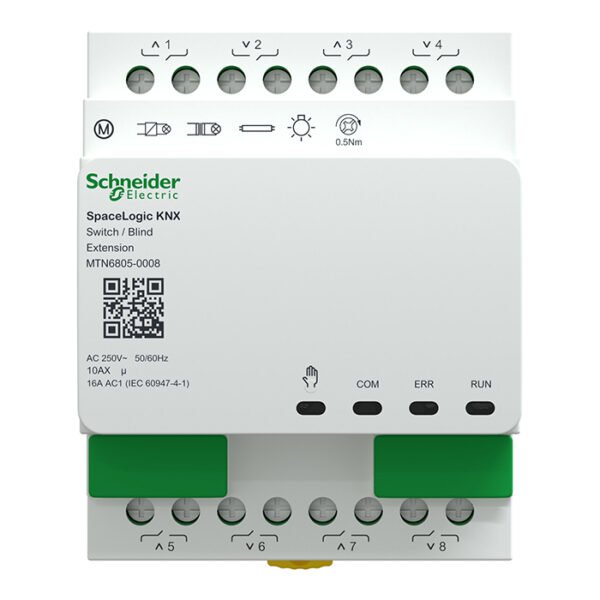

Accessories: SpaceLogic KNX Switch/Blind Extension MTN6805-0008, SpaceLogic KNX
Module Link MTN6941-0000, SpaceLogic KNX Cable Link S MTN6941-0001, SpaceLogic
KNX Cable Link L MTN6941-0002.
