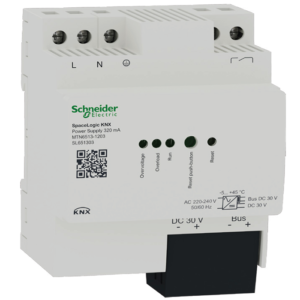

MTN6513-1203 Schneider SpaceLogic KNX Power Supply 320 mA
The SpaceLogic KNX power supply generates the bus voltage for the KNX line.
The power supply has two outputs – one KNX output with integrated choke and one DC 30 V output for additional devices.
Two identical power supply units can be connected in parallel to double the output current.
The power supply has a floating signalling contact for operation and diagnostic messages.
MTN6513-1203 Features:
Nominal current can be distributed as desired. Reset button to disconnect the power and reset the bus devices. Short-circuit proof. Surge-proof. Open-circuit proof. For operation in installations with emergency power supply.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN6513-1203 Specifications
Version : white
Art. no : MTN6513-1203
Range of product: KNX
Nominal voltage: 220-240 V AC,
Mains frequency: 50/60 Hz
Power dissipation: max. 2.9 W
KNX Medium: TP256
Bus output voltage: 28-31 V DC SELV
Bus output current: 320 mA (all outputs)
DC 30 V output voltage: 30 V DC
Signal output: 12-230 V AC, 2-30 V DC
Switching current: 5 mA … 2 A
Buffer time: ca. 200 ms at 230 V
Device width: 4 TE = approx. 72 mm
