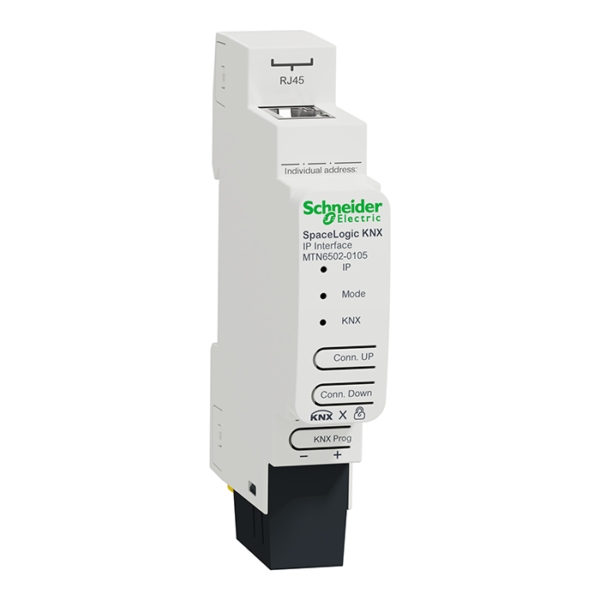

MTN6502-0105 Schneider SpaceLogic KNX IP Interface DIN Rail Introduction
Back to products
MTN6513-1202 Schneider SpaceLogic KNX Power Supply 640 mA

Description

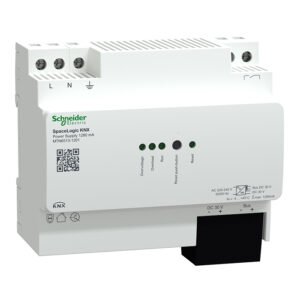

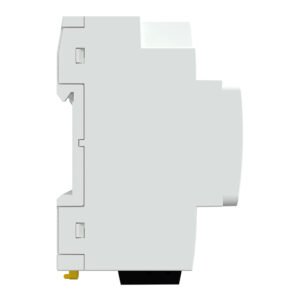

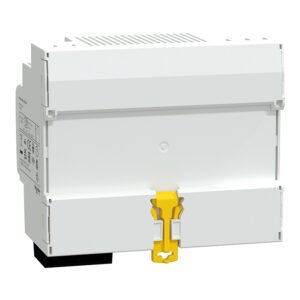

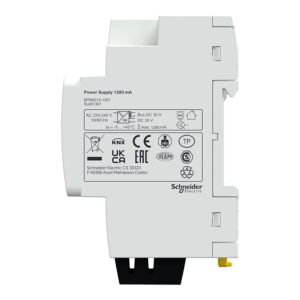

MTN6513-1201 Schneider SpaceLogic KNX Power Supply 1280 mA:

The SpaceLogic KNX power supply generates the bus voltage for the KNX line. The power supply has two outputs – one KNX output with integrated choke and one DC 30 V output for additional devices.
The power supply has a floating signalling contact for operation and diagnostic messages.

MTN6513-1201 Features:

Nominal current can be distributed as desired. Reset button to disconnect the power and reset the bus devices. Short-circuit proof. Surge-proof. Open-circuit proof. For operation in installations with emergency power supply.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

MTN6513-1201 Specifications:

Version : white
Art. no : MTN6513-1201
Range of product: KNX
Nominal voltage: 220-240 V AC,
Mains frequency: 50/60 Hz
Power dissipation: max. 6.4 W
KNX Medium: TP256
Bus output voltage: 28-31 V DC SELV
Bus output current: 1280 mA (all outputs)
DC 30 V output voltage: 30 V DC
Signal output: 12-230 V AC, 2-30 V DC
Switching current: 5 mA … 2 A
Buffer time: ca. 200 ms at 230 V
Device width: 6 TE = approx. 108 mm

Contents: With bus connecting terminal and cable cover.

MTN6513-1201 Schneider SpaceLogic KNX Power Supply 1280 mA

MTN6513-1201 Schneider KNX power supply is a bus device in the Schneider KNX intelligent lighting control system. Schneider KNX intelligent lighting control system consists of three parts: execution devices, input and output devices, and bus devices.
