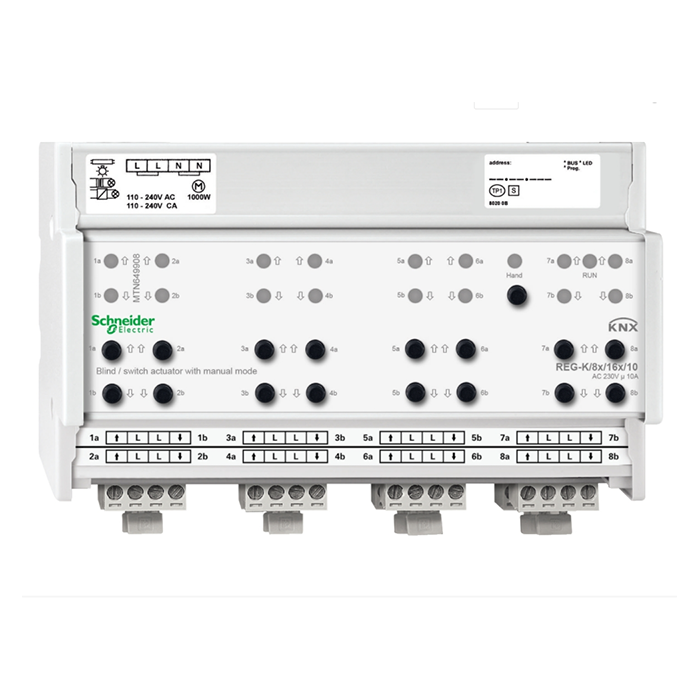

MTN649908 Schneider KNX Blind/switch actuator REG-K/8x/16x/10 with manual mode

MTN649908 Schneider 8-channel blind actuator Description：

For independent control of up to 8 blind/roller shutter drives or for switching up to 16 loads via make contacts. The function of the blind or switching channels is freely configurable. All blind/switch outputs can be operated manually using push-buttons.
Channel status display via LEDs. A green LED indicates readiness for operation.
With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

MTN649908 KNX Switch/Blind Extension software functions:

Blind type. Running time. Idle time. Step interval. Weather alarm. 8-bit positioning for height and slats. Scenes. Status and feedback function.

MTN649908 KNX Switch actuator functions:

Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function.
Disable function. Logic operation or priority control. Status feedback function for each channel.

MTN649908 KNX Switch/Blind Extension Specifications：

Version : light grey
Art. no : MTN649908
Range of product : KNX
FNominal voltage: AC 100-240 V ±10%
Operating voltage: min. AC 90 V – max. AC 265 V
Mains frequency: 50-60 Hz ±10%
For each blind output:
Nominal current: 10 A, inductive load cosϕ = 0.6
Motor load: AC 100 V, max. 434 W
AC 230 V, max. 1000 W
AC 240 V, max. 1043 W
For each switch output:
Nominal current: 10 A, ohmic load cosϕ = 1
10 A, inductive load cosϕ = 0.6
Nominal load
Incandescent lamps: AC 100 V, max. 869 W
AC 230 V, max. 2000 W
AC 240 V, max. 2086 W
Halogen lamps: AC 100 V, max. 739 W
AC 230 V, max. 1700 W
AC 240 V, max. 1773 W
Fluorescent lamps: AC 100 V, max. 434 VA
AC 230 V, max. 1000 VA
AC 240 V, max. 1043 VA
parallel-compensated
Capacitive load: AC 230 V, 10 A, max. 105 µF
External auxiliary voltage (optional):
Nominal voltage: AC 110-240 V ±10%
Operating voltage: min. AC 92 V – max. AC 265 V
Device width: 8 modules = approx. 144 mm

Note: The blind actuator/switch actuator cannot be used in conjunction with the weatherdependent automatic functions of the weather combi-sensor/DCF77 art. no. MTN663692. If you require these functions then use the blind actuators art. no. MTN6498…

Contents: With bus connecting terminal and cable cover.
