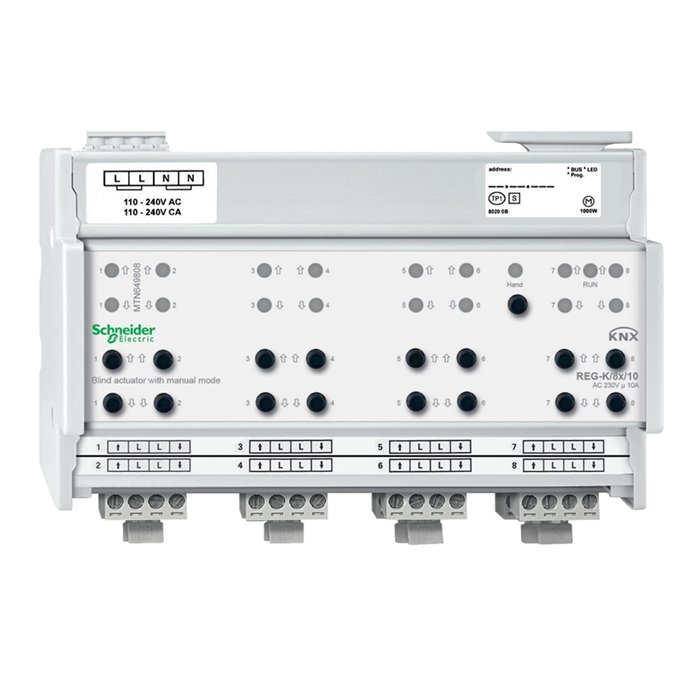

MTN649808 Schneider SpaceLogic KNX Blind actuator REG-K/8x/10 with manual mode
MTN649808 Schneider 8-channel blind actuator Description：
For independent control of 8 blind/roller shutter drives. The function of the blind channels is freely configurable. All blind outputs can be operated manually using push-button operation.
Channel status display via LEDs. A green LED indicates readiness for operation.
With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN649808 KNX Switch/Blind Extension software functions:
Blind functions: Blind type. Running time. Idle time. Step interval. Differentiated disable functions and weather alarms. 8-bit positioning for height and slat. Scenes. Manual/automatic mode. Differentiated status and status feedback functions.
MTN649808 KNX Switch/Blind Extension Specifications：
Version : light grey
Art. no : MTN649808
Range of product : KNX
For each blind output:
Nominal voltage: AC 100-240 V ±10%
Operating voltage: min. AC 90 V – max. AC 265 V
Mains frequency: 50-60 Hz ±10%
Nominal current: 10 A, inductive load cosϕ = 0.6
Motor load: AC 100 V, max. 434 W
AC 230 V, max. 1000 W
AC 240 V, max. 1043 W
Device width: 8 modules = approx. 144 mm
