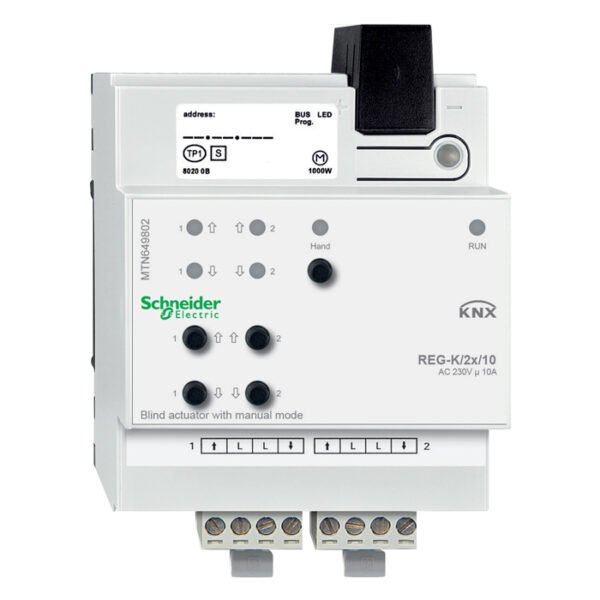

MTN649804 Schneider SpaceLogic KNX Blind actuator REG-K/2x/10 with manual mode
MTN649804 Schneider 4-channel blind actuator Introduction：
For independent control of 4 blind/roller shutter drives. The function of the blind channels is freely configurable. All blind outputs can be operated manually using push-button operation.
Channel status display via LEDs. A green LED indicates readiness for operation.
With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.
MTN649804 KNX Blind Extension software functions:
Blind functions: Blind type. Running time. Idle time. Step interval.
Differentiated disable functions and weather alarms. 8-bit positioning for height and slat.
Scenes. Manual/automatic mode. Differentiated status and status feedback functions.
MTN649804 KNX Blind Extension Specifications：
Version : light grey
Art. no : MTN649804
Range of product : KNX
Supply from KNX: DC 24 V, max. 12.5 mA
Nominal voltage: AC 230 V
Nominal current: 10 A, inductive cos = 0.6
Nominal power of motor: max. 1000 W at AC 230 V
Switching frequency: max. 15 times per minute at nominal load
Fuse: one 10 A circuit breaker connected upstream per channel
Ambient temperature：
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Environment: can be used at up to 2000 m above sea level (MSL)
Max. humidity: 93 %, no moisture condensation
Operating elements: 1 programming button,1 “Manual” manual operation key, 2 channel keys per channel
Display elements: 1 red LED: programming control,
1 green LED: ready for operation, “RUN”,
1 red LED: manual operation status,
2 yellow status LED per channel
