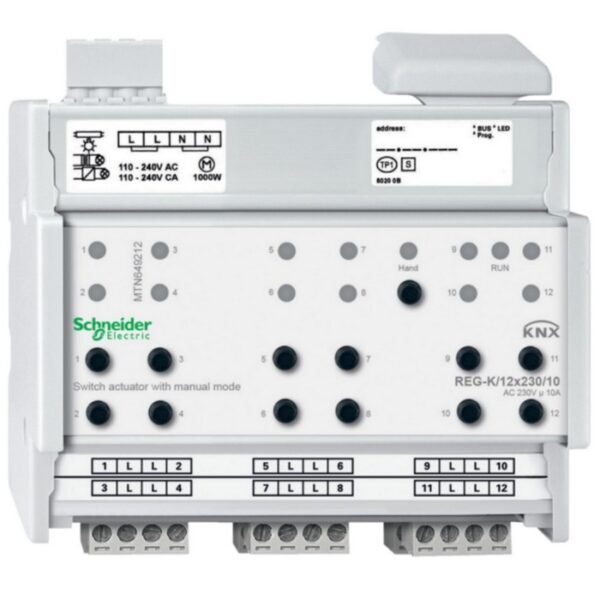

MTN649212 Switch actuator REG-K/12x230/10 with manual mode
Back to products
MTN6700-0104 Schneider 4-channel KNX Hybrid Switch with manual mode

Description

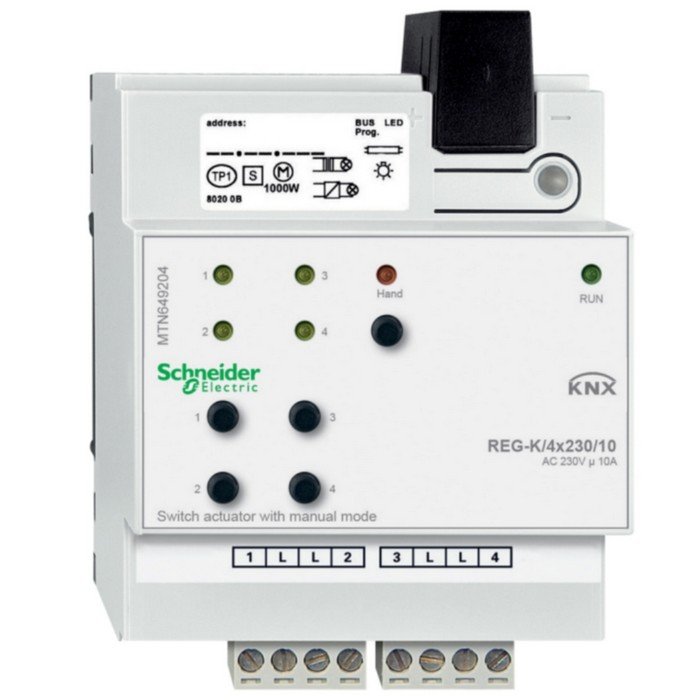

MTN649204 Switch actuator REG-K/4×230/10 with manual mode  Description：

For independent switching of up to 4 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using pushbutton operation.
Channel status display via LEDs. A green LED indicates readiness for operation.

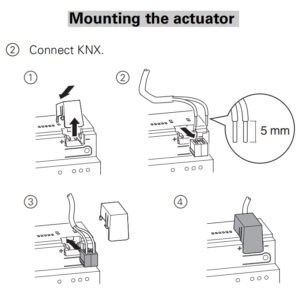

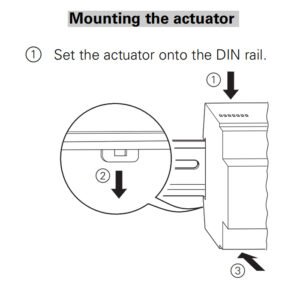

With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

MTN649204 Switch actuator KNX software functions:

Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without
manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function.
Disable function. Logic operation or priority control. Status feedback function for each channel.

MTN649204 Switch actuator KNX Specifications：

Version : light grey
Art. no : MTN649204
Range of product:KNX
Product or component type: Switch actuator
Nominal voltage: AC 230 V, 50-60 Hz
For each switch output:
Nominal current: 10 A, cosφ = 1; 10 A, cosφ = 0.6
Incandescent lamps: AC 230 V, max. 2000 W
Halogen lamps: AC 230 V, max. 1700 W
Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated
AC 230 V, max. 1000 W with parallel compensation
Capacitive load: AC 230 V, max. 105 µF
Device width: 4 modules = approx. 72 mm

Contents: With bus connecting terminal and cable cover.

MTN649204 Switch actuator REG-K/4×230/10 with manual mode

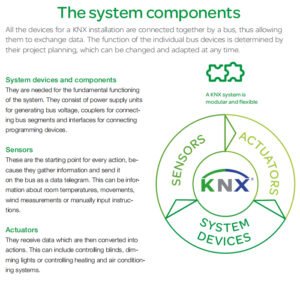

MTN649204 Schneider 4-channel 10A switch actuator is Schneider SpaceLogic KNX switching component. The 4-channel 10A switch control module is the execution device part of the execution device in the smart lighting control system. Schneider KNX smart lighting control system consists of three parts: execution equipment, input and output equipment, and bus equipment. Execution equipment includes switch modules, curtain modules, dimming modules, etc.
