MTN647393 Schneider Electric KNX Switch actuator REG-K/2×230/16 with manual mode
MTN647393 Description

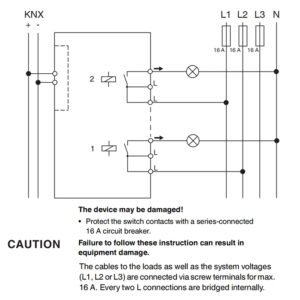

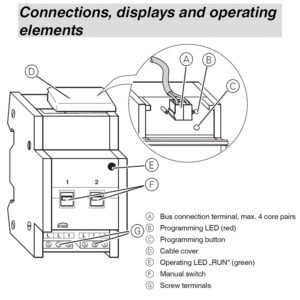

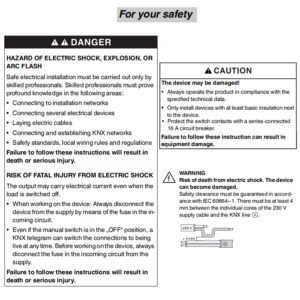

For independent switching of loads via make contacts. All 230 V switch outputs can be operated with manual switches. With integrated bus coupler. The device is connected to the mains via screw terminals. every second L connection is bridged internally. A green LED indicates readiness for operation after the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary.
MTN647393 KNX software functions:
Operation as break or make contact, delay functions for each channel, staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function, blocking and additional logic operation or priority control, scenes, status feedback function per channel, central function. Comprehensive parameterisation for bus voltage failure and recovery, parameterisable download behaviour.
Specifications：
Version : light grey
Art. no : MTN647393
Range of product:KNX
Product or component type: Switch actuator
Operating mode: Manual
Bus type: KNX
Modular device additional info: Connectable with different phases
Number of contacts: 2
Mounting support: DIN rail
Nominal voltage: AC 100-240 V ±10%
Operating voltage: min. AC 90 V – max. AC 265 V
Mains frequency: 50-60 Hz ±10%
For each switching contact:
Switching current: 16 A, cosφ= 0.6
AC1 operation: max. 16 A
AC3 operation: max. 10 A
AC5 operation: max. 16 A
DC current switching capacity: max. 16 A/ 24 V DC
Output life endurance:
Mechanical: >106
AC1/AC3/AC5 operation: >3×104
230V, 1A resistive: >8×105
Nominal load
Incandescent lamps: AC 100 V, max. 1600 W
AC 230 V, max. 3600 W
AC 240 V, max. 3840 W
Halogen lamps: AC 100 V, max. 1086 W
AC 230 V, max. 2500 W
AC 240 V, max. 2608 W
Fluorescent lamps: AC 100 V, max. 1086 VA
AC 230 V, max. 2500 VA
AC 240 V, max. 2608 VA
parallel-compensated
Capacitive load: AC 230 V, 16 A, max. 200 µF
Minimum switching performance: 100 mA/12 V AC/DC
Maximum peak inrush-current:
150µs: 600 A
250µs: 480 A
600µs: 300 A
Device width: 2.5 modules = approx. 45 mm
Packing Units:
Unit Type of Package 1:PCE
Number of Units in Package 1:1
Package 1 Height:7.100 cm
Package 1 Width:7.700 cm
Package 1 Length:9.700 cm
Package 1 Weight:200.00 g
