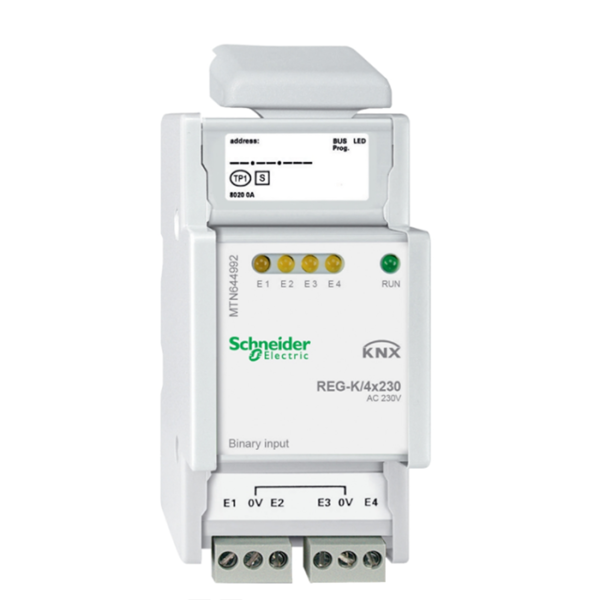

MTN644992 Schneider SpaceLogic KNX Binary input REG-K/4x230
Back to products
MTN670802 Schneider Push-button interface 2-gang plus

Description

MTN645094 Schneider SpaceLogic KNX Fan coil actuator REG-K Introduction：

For heating, ventilation and air conditioning control. For controlling fan convectors with up to three speeds, as well as for controlling three-step motor drives (continuous/pulse-width-modulated) or two-step thermal drives. The actuator supports 2-pipe and 4-pipe systems.
Two floating binary inputs for window contact and level contact for condensed water container, for example. Connection of 1-speed to 3-speed fans. The push-button plus with room temperature control can be used to activate the fan coil actuator.
With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal.

MTN645094 KNX Fan coil actuator software functions:

In automatic mode, the fan speeds are controlled dependently by the control value of the push-button plus. The three fan speeds and automatic mode can be switched via EIB telegram. The fan can be controlled either directly or via actuators / suitable dimming actuators.
Fan speed feedback is possible via corresponding status feedback objects e.g. status LED of the push-button. The fan speed as well as the automatic status “(Auto)” can be displayed on the display of the push-button plus with TCU.

MTN645094 Valve Control:

Type of controller: PI controller (PWM and continuous).
Controller mode: Heating and/or cooling with common or separate valve outputs.
Operating modes: The operating mode is selected in the push-button plus with TCU.

MTN645094 KNX Fan coil Specifications：

Version : light grey
Art. no : MTN645094
Range of product : KNX
Power supply: AC 230 V ±10 %, 50/60 Hz
Power consumption: max. 3 VA
Outputs: 3 floating contacts (fan coil), 2 semi-conductor switches (valve connections)
Switching capacity for valves: 0.5 A, AC 24V – 230 V
Additional relay switching capacity: 16 A
Fan relay switching capacity: 8 A
Inputs: 2, max. cable length 5 m
Operation: Key for fan levels and heating/cooling mode
Displays: 9 status LEDs
Device width: 4 modules = approx. 72 mm
Accessories: Thermoelectric valve drive 230 V MTN639125, Thermoelectric valve drive 24 V MTN639126, Push-button 2-gang plus with room temperature control unit System M MTN6212-03.. /-04.., Push-button 4-gang plus with room temperature control unit System M
MTN6214-03.. /-04..

Contents: With bus connecting terminal and cable cover.

MTN645094 Schneider SpaceLogic KNX Fan coil actuator REG-K

MTN645094 Schneider SpaceLogic KNX Fan coil actuator is the switching control unit part of the execution equipment in the Schneider KNX lighting control system. Schneider KNX the lighting control system consists of three parts: execution equipment, input and output equipment, and bus equipment. Execution equipment includes switch modules, curtain modules, dimming modules, etc.
