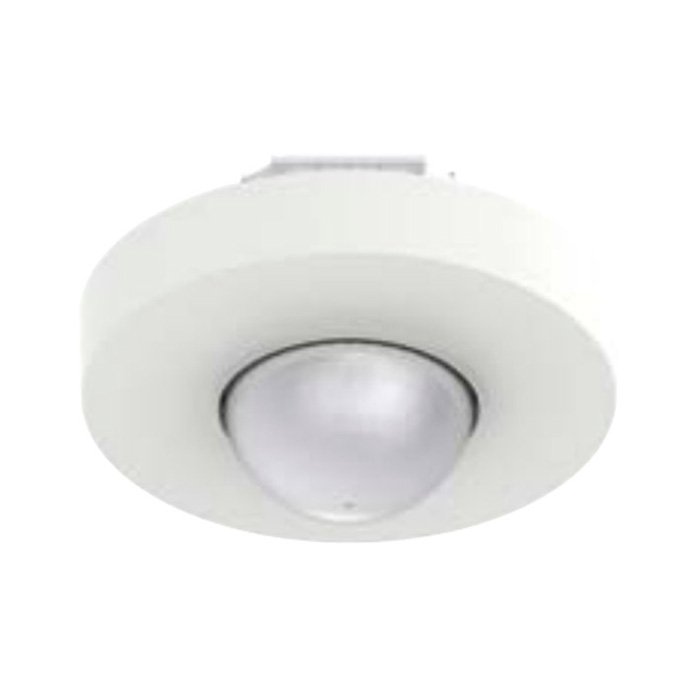

MTN6354-0019 Schneider KNX High Bay presence detector Introduction：
KNX presence detector for surface-mounted installation in rooms with high ceilings, e.g. highbay warehouses or sports halls.
The presence detector detects the presence of persons even in the case of small movements.
Control of the lighting is carried out dependent on movement (2 channels) or additionally dependent on brightness (1 channel) via KNX telegrams. If there is sufficient daylight, the lighting is switched off or adapted to a detection brightness (constant light regulation).
Devices for heating, ventilation or air conditioning (HVAC) can also be controlled (1 channel).
The presence detector has two detection sensors (passive infrared), a brightness sensor, an IR receiver and an LED to indicate a detected movement, in test mode indication of the activated programming mode.
The presence detector can be used as a single detector or in master-slave mode. The setting is carried out in the ETS.
The presence detector can also be set and tested without the ETS, but with the appropriate remote control (available as an accessory).
Indoor installation on ceiling (IP 54) with surface-mounted housing with two screws and plugs.
Optionally, a protective metal basket (available as an accessory) can be installed to protect the lens.
MTN6354-0019 Schneider Presence detection Description：
Schneider Electric KNX presence detector MTN6354-0019 is in color white with frontal, lateral detection sensor. This presence detector mounting mode can be both ceiling and surface mounted. The protection type is creep zone protection, improving safety level. The presence detector is made of plastic, making it as resistant as possible. And it features protective untreated surface treatment. And it is mercury free as well as heavy metal free, taking care of the environment and your health all the time. KNX combines all main building functions like lighting, heating, air-conditioning or shading into one intelligent system, resulting in considerable energy savings, and save installation time.
KNX software functions:
Movement detection: The detected presence of a person is signalled using a KNX telegram. Lighting control: The room lighting is controlled depending on movement and brightness. If there is sufficient daylight, the lighting is switched off or dimmed to a constant level. Basic lighting: Activates basic lighting after the overtravel time has elapsed, either for a limited time or dependent on the brightness. HVAC control: Devices for heating, ventilation, air conditioning (HVAC) are switched from energy-saving mode to comfort mode dependent on movement. Operating modes: Single detector, Master, Slave, Master in parallel operation. Master: Controls the lighting and HVAC system. Additional detectors as slaves increase the area of detection. Slave: Only detects movement in its area and sends the information to the master. Master in parallel operation: Controls the lighting in its area (can be expanded with additional detectors as slaves). The only master in the installation only controls the HVAC system for the entire area. 2 logic gates
MTN6354-0019 KNX Presence detection Specifications：
Colour tint：polar white
Art. no : MTN6354-0019
Range of product : KNX
Product or component type：Presence detector
Complementary:
Device presentation：Complete product
Material：Plastic glossy
Surface treatment：Untreated
Device mounting：Surface/Ceiling
Detection face：Frontal: 18 m/Lateral: 18 m
Type of setting：Light sensitivity adjustable/Time adjustment
Protection type：Creep zone protection
Number of channels：4
Opening angle: 180°
Range: Radius of max. 18 m (tangential)
Mounting height: 4 – 14 m
Optimal mounting height: 12 m
Time setting: 60 s – 255 min.
Sensors: 2 x passive infrared
Number of zones: 1416
Detection brightness: internal light sensor adjustable from approx. 2 to 1000 Lux
Protection rating: IP 54
Packing Units：
Unit Type of Package 1：PCE
Number of Units in Package 1：1
Package 1 Height：7.8 cm
Package 1 Width：12.5 cm
Package 1 Length：16.0 cm
Package 1 Weight：280.0 g
