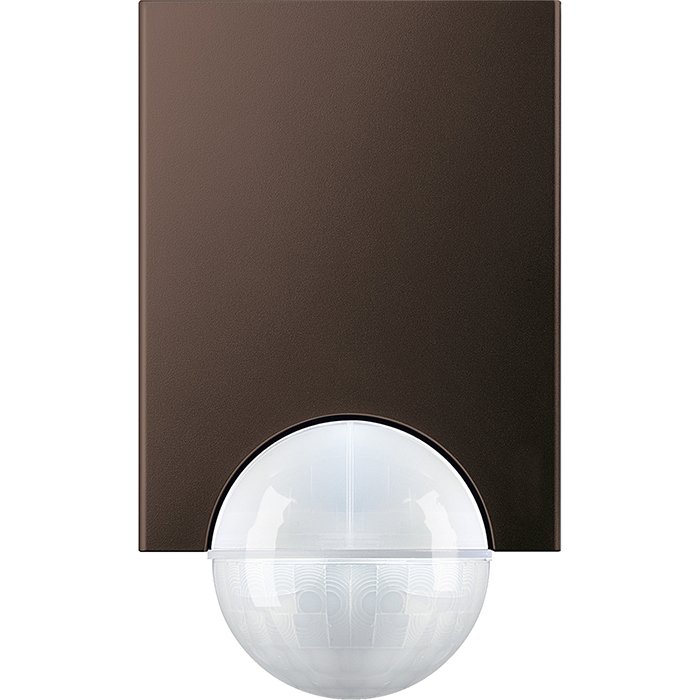

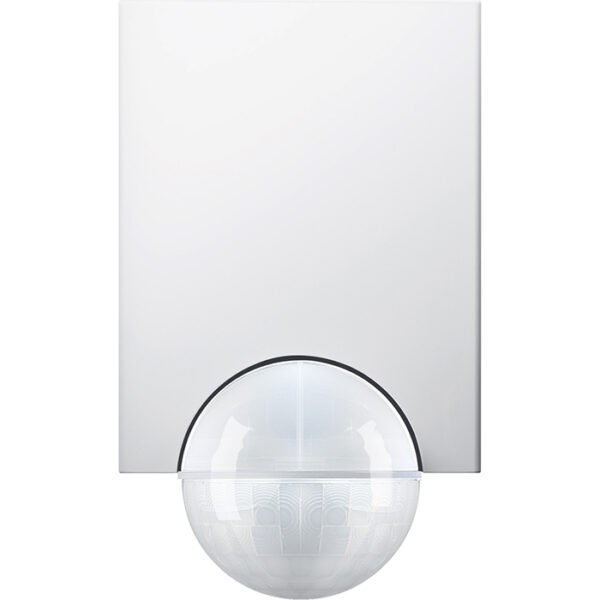

MTN632515 Schneider Movement detector KNX
The ARGUS 220 (subsequently called ARGUS) is a KNX movement detector which can be used both indoors and outdoors due to its IP 55 protection rating.
Surface monitoring of 220° for larger house fronts and areas of the house (max. range of 16 m) is combined with a 360° short-range zone with a radius of approx. 4 m.
The operating elements for setting the brightness, time and sensitivity (range) as well as the programming area and a red LED for displaying the programming are located under the cover plate for protection. The physical address is programmed using a programming magnet (e.g. art. no. MTN639190).
The ARGUS can be mounted on the wall or ceiling and also on to corners or fixed pipes with the mounting bracket (art. no. MTN5652 ..) which is available as an accessory.
The integrated functional display lights up when movement is detected and thus simplifies the alignment of the device at the installation site. You can also optionally switch off the functional display via a parameter setting.
The area of detection can be adapted to the local conditions due to the horizontally, vertically and axially adjustable sensor head. You can also block unwanted zones or sources of interference (e.g. trees) from the area of detection using the masking segments provided.
The device is fitted with a light sensor whose brightness threshold can be set from approx. 3 to 1000 lux. Depending on the application, it is also possible to use the device as a light-sensitive switch or to link the brightness threshold with the detection of movement. Several movement detectors can be combined together in a system.
The power is supplied via the bus line. No additional mains connection is required. As the bus line is connected directly to the terminal block in the wall connection box, a bus connecting terminal is not required.
MTN632515 Schneider Movement detector KNX software functions:
Self-adjusting staircase timer.
Five movement blocks: up to four functions can be triggered per block.
Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, disable function. Sensitivity, brightness and staircase timer can be set using the ETS or the potentiometer.
MTN632515 Schneider Movement detector Specifications：
Range: max. 16 m
Colour: dark brazil
Number of levels: 7
Art. no : MTN632515
Angle of detection: 220°
Type of protection: IP 55.
Minimum mounting height: 1.7 m
KNX connection: via terminal block
Power consumption: approx. 7 mA
Recommended mounting height: 2.5 m
Nominal voltage: DC 24 V (+6 V / -4 V)
Sensitivity: infinitely adjustable externally
Number of zones: 112 with 448 switching segments
Light sensor: infinitely adjustable externally,from approx. 3 lux to approx.1000 lux
Time: infinitely adjustable in the software from 3 seconds to 152 hours or adjustable externally in 6 steps from approx. 1 second to approx. 8 minutes.
Programming: magnet-sensitive sensor for assigning the physical address.
Display elements: 1 red LED: Programming check,1 red LED: Functional display
Possible settings for the sensor head:
Wall mounting: 9° up, 24° down, 12° left/right,± 12° axial
Ceiling mounting: 4° up, 29° down, 25° left/right,± 8.5° axial
Type of protection: IP 55 at an angle of inclination from 15° to 90°
Ambient temperature: -25 °C to +55 °C
EC guidelines: Low Voltage guideline 73/23/EEC,EMC guideline 89/336/EEC
Initialisation: Due to the limitation of the telegram rate, a telegram cannot be generated until at least 17s after the initialisation.
Contents: With cover plate and segments to limit the area of detection, screws and plugs.
Accessories：
– Mounting bracket (Art. no. MTN565291)
– Programming magnet for EMO valve drive (Art. no.MTN639190)
