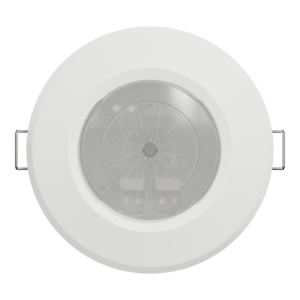

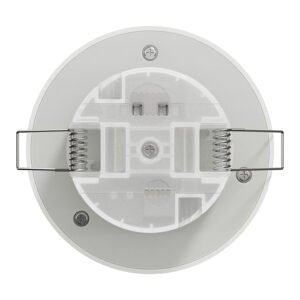

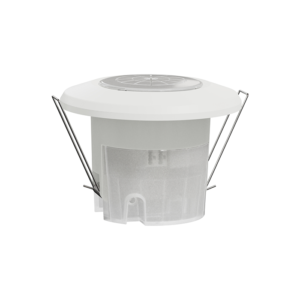

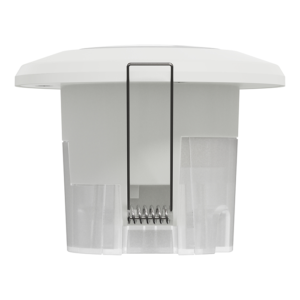

MTN6300-0019 Schneider SpaceLogic KNX Presence Detector DI
MTN6300-0019 Schneider KNX Presence Detector Introduction：
The presence detector DI (referred to below as detector) is a KNX presence detector for false ceiling mounting. The detector is used to control a programmed data telegram that triggers max. 2 lighting channels when movement is detected.
The conditions of presence detection can be program med according to the occupancy and the ambient brightness.
• 2 input channels that can connect to 2 separate push-buttons for lighting On / Off or dimming control.
• AUTO mode or SEMI AUTO mode
• Detection range can be extended by connecting secondary sensors to a primary sensor.
• With red LED indicator for indication of movement detection.
MTN6300-0019 KNX functions:
SpaceLogic KNX Presence Detector DI by Schneider Electric helps to monitor the detection zone for optimal lighting control. This device provides a 9m movement detection sensor with a 360° angle detection. The device includes two digital inputs to connect directly, for example, conventional switches. This Presence detector is with both light sensitivity adjustment and time adjustment. This device can be used as a single device or in combination with a primary-secondary configuration. The detector can be configured in auto mode, semi-auto mode, or test mode. It has adjustable sensitivity. The Detection brightness is from 1 to 2000lux. The device can detect small movements inside the detection area and can control two channels. This Presence detector is suitable for small, medium, and big commercial buildings.
MTN6300-0019 KNX Presence Detector DI Specifications：
Version : White
Art. no : MTN6300-0019
Range of product : KNX
Supply voltage: KNX bus voltage
Bus current: approx. 10 mA
Type of setting：Light sensitivity adjustable/Time adjustment
Detection face：Radius: 4.5 m
Movement detection area：9 m
Presence detection area：9 m
Detection angle：360°
Material：Plastic matt
surface treatment：Untreated
Device mounting：Ceiling
Mounting height：2.5 m
Embedding depth：60.8 mm
Number of channels: 2
Binary inputs: 2
Mounting height: 2 m … 3 m (optimal 2.5 m)
Detection range: 360°, Ø 9 m at 2.5 m mounting height and 20 °C
Ambient temperature: -20 °C … +45 °C
Storage temperature: -5 °C … +55 °C
Transport temperature: -25 °C … +70 °C
Relative humidity: 5 % … 95 %
Protection type: IP20
Protection class: III (mounted as intended)
Function modes: Auto mode(Presence),Semi auto mode (Absence),Test mode
Sensitivity: adjustable
Light sensor: 10 … 2000 Lux
Timer adjustment: 1 minute to 255 minutes
Height：99.2 mm
Width：99.2 mm
Depth：74.1 mm
Unit Type of Package 1：PCE
Number of Units in Package 1：1
Package 1 Height：8.5 cm
Package 1 Width：10.0 cm
Package 1 Length：10.0 cm
Package 1 Weight：345.0 g
