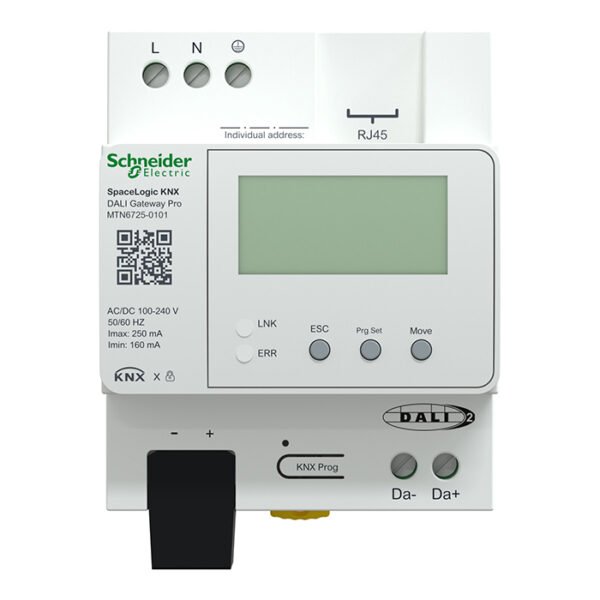

MTN6725-0101 Schneider KNX DALI gateway Dimmer actuator
Back to products

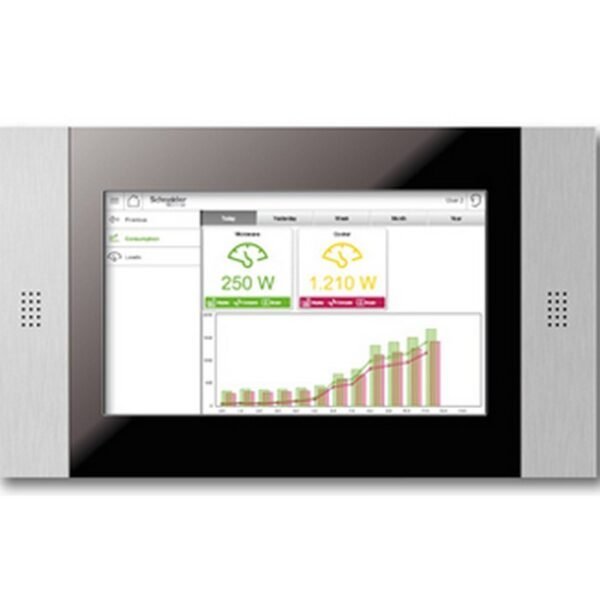

MTN6260-0310 Schneider KNX Touch IP 10 Touch Panel screen

Description

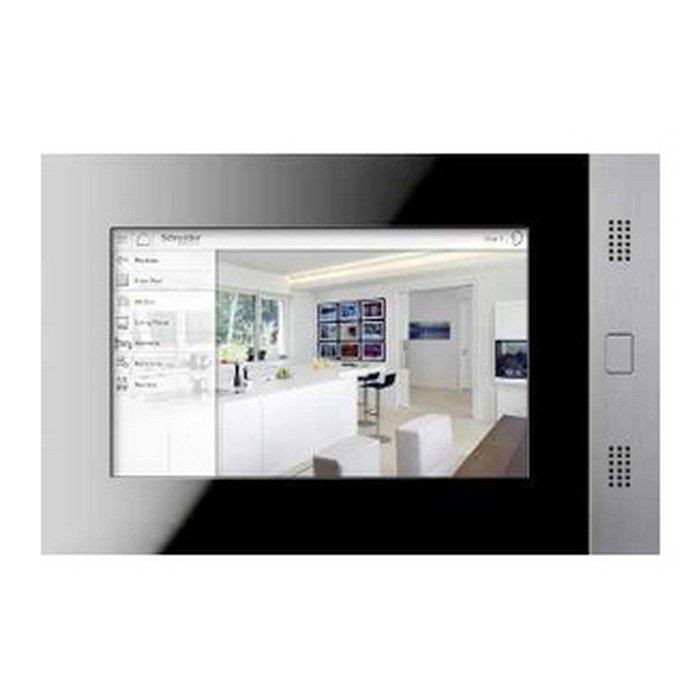

MTN6260-0307 Schneider SpaceLogic KNX IP 7 inch touch screen

The SpaceLogic KNX Touch IP 7 inch is a touch screen used to display the visualization from Wiser for KNX or spaceLYnk logic controllers. It can be installed in both Residential and Commercial buildings and in new or existing KNX installations.
The touch panel can display the widget-based Touch visualization or the PC/Tablet visualization with the possibility of realistic graphics. It can also display the new Wiser KNX App, in case the user would like to control their KNX installation in a similar way as from his Smartphone.
All interaction with the touch panel is very easy and efficient, adapted to the needs of the modern concept of smart homes and buildings. The installation can be done horizontally or vertically allowing landscape or portrait mode.
The touch panel is equipped with an embedded application, making the configuration easy and fast. Thanks to WiFi connectivity the installation of touch panel is easier and provides a freedom in choosing of installation location.
An over the air update (OTAU) feature available in the touch panel keeps the solution always up to date and secure. The Touch Panel can be installed surface mounted, anywhere were there would be a 24 V cables to power it.

Schneider KNX 7.0 inch touch screen Horizontal orientation：

ertical top / bottom viewing angle: 30° / 70°
Horizontal right / left viewing angle: 70° / 70°
Vertical orientation
Vertical top / bottom viewing angle: 70° / 70°
Horizontal right / left viewing angle: 30° / 70°
Power
2-wire power supply: DC 24 V
Current consumption in standby state (mA): 90 mA
Current consumption in activestate (mA): 240 mA
Wi-Fi®
Frequency band: IEEE 802.11 a/b/g/n/ac 2.4/5 GHz (2400-2483.5 MHz, 5150-5250 MHz)

MTN6260-7760 Schneider SpaceLogic KNX Touch IP 7 TouchPanel Specifications

Version : black
Art. no : MTN6260-7760
Range of product : KNX
Screen diagonal: 17.47 cm (7”)
Resolution: 1024 x 600
Type: Colorful TFT LCD & multi-touch capacitive screen
Environmental conditions：
Operating temperature: -10 °C to +55 °C
Operating Humidity: 0% to 95% RH no condensing
Storage temperature: -25 °C to +70 °C
Storage humidity: 0 % to 95 % RH no condensing
IP rating: IP30
Dimensions and weight：
Dimensions (W x H x D): 132.76 x 196.65 x 23.91 mm
Weight: 448 g / 814 g (with package)

Schneider SpaceLogic KNX Touch IP 7 Location：
When choosing the installation location, the maximum cable length must be observed.
The following shows the lengths from the touch panel to the respective assemblies in the system.
■ YR 2×0.8 mm, J-Y(ST)Y 2x2x0.8 mm, A-2Y(L)2Y 2x2x0.8 mm: cable must not be longer than 120 m.
■ A-2Y(L)2Y 2x2x0.6 mm, J-Y(ST)Y 2x2x0.6 mm: cable must not be longer than 80 m.

MTN6260-0307 Schneider SpaceLogic KNX IP 7 inch touch screen

MTN6260-0307 Schneider KNX 7.0 inch touch screen is the input and output device part of the Schneider KNX intelligent lighting control system.. Schneider KNX intelligent lighting control system consists of three parts: execution devices, input and output devices, and bus devices.
