MTN6215-0410 Schneider SpaceLogic KNX 4 inch Touch Unit
The 4” Touch Unit is a KNX programmable control unit. It is powered via the KNX bus and auxiliary DC power supply. All functions are displayed on a touch screen and are called up using simple finger movements.

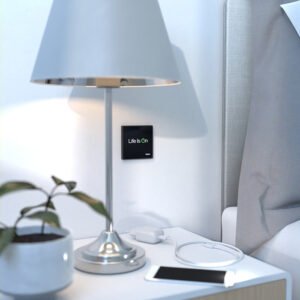

The 4” Touch unit is a room controller designed to be the center of the smart home. Premium materials and a high-quality display with built-in sensors offer a wide range of applications.

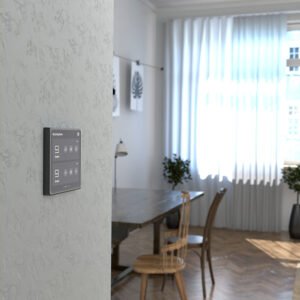

The slim design of the product fits perfectly into the modern concept of today’s smart installations and architecture. The product can be used in both residential and commercial projects.
The product has a modern, seamless user interface that provides an immersive experience every time it is used, with the display waking up simply by moving closer thanks to the proximity sensor.
The display has up to 9 screens that can display individual functions as widgets. This allows you to have different combinations of up to 6 widgets on each screen and effectively control all connected systems. You move between screens with a simple swipe, familiar from traditional smartphone use.
MTN6215-0410 Schneider SpaceLogic KNX 4 inch Touch User Interface functions:
■ Different UI theme style
■ Screen saver
■ Orientation indicator
■ Proximity function triggered by object
■ Setting the backlight in normal/night mode
■ Setting the appearance of the screen
MTN6215-0410 Schneider SpaceLogic KNX 4 inch Touch Main functions
■ Brightness dimming
■ RGB dimming
■ RGBW dimming
■ Colour temperature dimming
■ Venetian blind position and slat
■ Air conditioner control
■ Room temperature control
■ Ventilation control
■ Audio control
MTN6215-0410 Schneider SpaceLogic KNX 4 inch Touch HVAC controller functions:
■ FCU controller: switching on/off (2-point control), switching PWM (PI control), continuous control (PI control)
■ Floor heating controller
■ Ventilation controller
General: Scene group function, 8 logic function channels (AND; OR, XOR, threshold comparator, format converter) each with 8 inputs
MTN6215-0410 Schneider SpaceLogic KNX 4 inch Touch Specifications
Version : Black
Art. no : MTN6215-0410
Range of product : KNX
Range of product：SpaceLogic KNX
Product or component type：Touch panel screen
Product destination：KNX bus system
Bus type：KNX
Function available：Touch function
Processor name：ARM Cortex-A7
Colour tint：Black painted
Schneider SpaceLogic KNX 4 inch Touch Complementary：
Device mounting：Flush

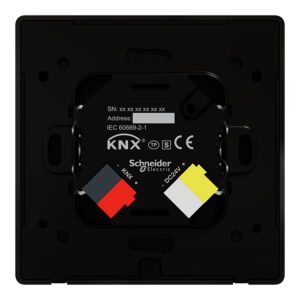

[Ue] rated operational voltage：21…30 V DC

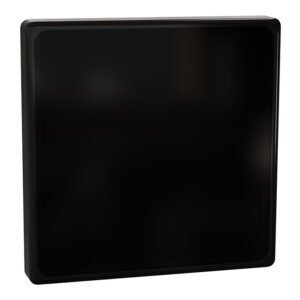

Display type：TFT LCD screen
Display resolution：480 x 480 pixels
Display colour：16 million colours
Display size：4 inch
Memory type：64 MB flash
128 MB RAM
Mounting position：Vertical/Horizontal
Material：Glass and plastic
Communication network type：Wired
Height：86 mm

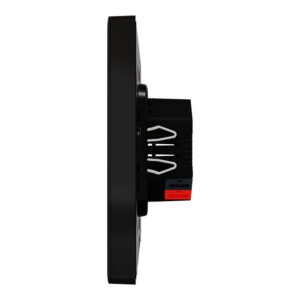

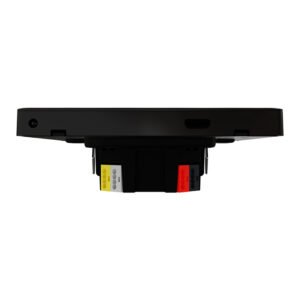

Depth：32.1 mm
Width：86 mm
Schneider SpaceLogic KNX 4 inch Touch Environment:
Ambient air temperature for operation：-5…45 °C
Max. humidity：93 % relative humidity, no con-densatio
IP protection rating: IP 20
Packing Units:
Unit Type of Package 1：PCE
Number of Units in Package 1：1
Package 1 Height：5.300 cm
Package 1 Width：9.200 cm
Package 1 Length：9.500 cm
Package 1 Weight：184.000 g
