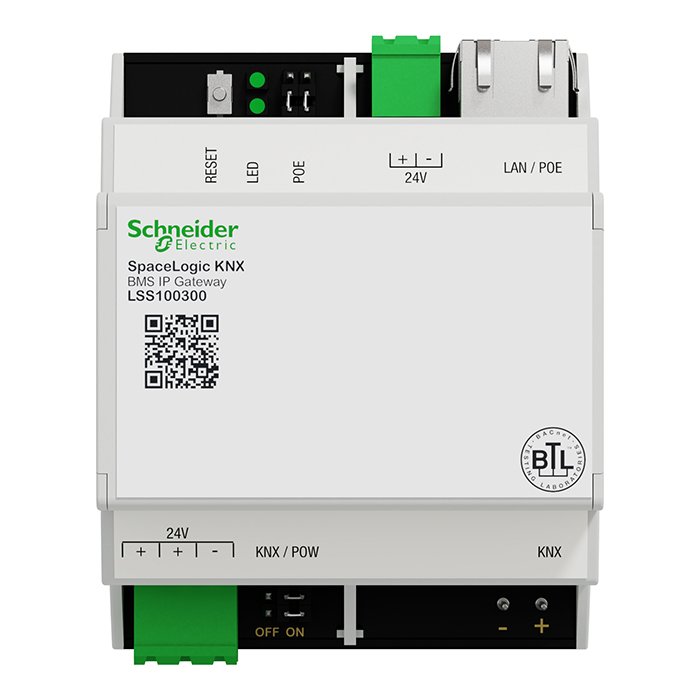

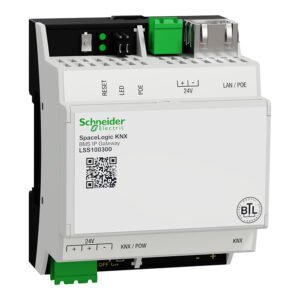

LSS100300 Schneider SpaceLogic KNX BMS IP Gateway:
The SpaceLogic KNX BMS IP Gateway is a bidirectional multifunctional device that allows integration of Spacelogic KNX installations within Ecostruxure Building Operation. The main communication interface is KNX TP with BAC protocol.
The device combines three functions in one device:
■ KNX IP router (max. 500 objects)
■ KNX IP interface
■ DPSU choke power supply
The Gateway is designed for commercial installations and certified by BTL as Application Specific Controller (B-ASC) which ensures 100% compatibility, and at the same time, guarantees a seamless integration with any BACnet device.
LSS100300 Schneider SpaceLogic KNX BMS IP Gateway Features:
■ Number of BACnet objects: 4,000
■ Number of BACnet subscriptions (COV) requests: 4,000
■ KNX group objects: 4,000
■ KNX IP routing objects: 500
■ KNX IP Secure compatibility
■ KNXP IP tunneling, commissioning of KNX devices, long frame support
■ HTTP / HTTPS / NTP servers
■ Direct import of *knxproj file with automatic filtering tables

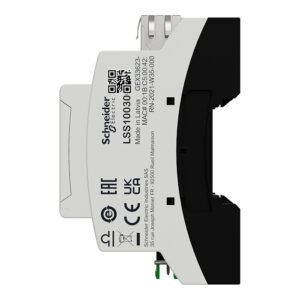

LSS100300 KNX BMS IP Gateway Specifications
Version : white
Art. no : LSS100300
Range of product:KNX
Supply voltage: DC 24 V
Power supply voltage: DC 12 V – 30 V SELV
Power consumption: 2 W
Power Supply DPSU choke: DC 21 V – 31 V SELV
DPSU choke: rated current max. 320 mA, chort circuit proof, tripping current ≤1A
Display elements:
– LED indicator 1: Green LED (CPU load)
– LED indicator 2: Green LED (Operation) or Red LED (Reset)
Controls: 1x reset button, 2 jumpers (PoE and POW)

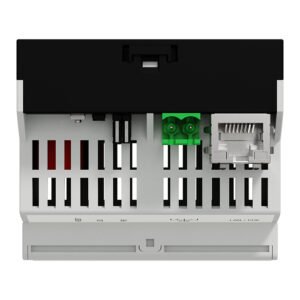

Interfaces: 1x RJ45 Ethernet 10/100 Mbit/s

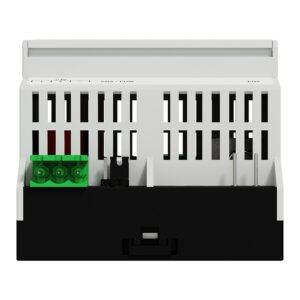

Terminals:
– KNX bus: Bus terminal 2 x 0.8 mm
– Power supply/Power supply DPSU choke: 2-gang/3gang pluggable screw terminal for
max. 2x 0.5 mm²–1.5 mm²
Protection type: IP20
Ambient temperature operation: 0°C to +45°C
Device width: 4 modules = approx. 72 mm
BACnet Protocol Revision: 22
BACnet Device Profile: B-ASC, B-GW
Commissioning
Access the web server with the factory default IP configuration:
IP address: 192.168.0.10
Subnet: 255.255.255.0
User name: admin
Password: admin
For more information, refer to the software description.
