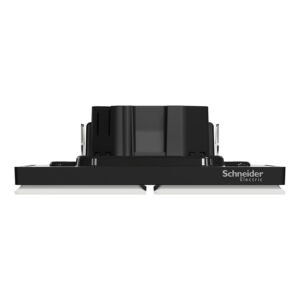

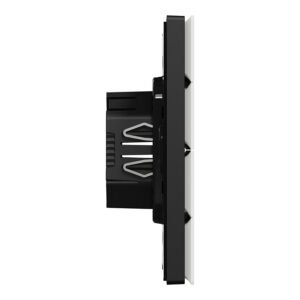

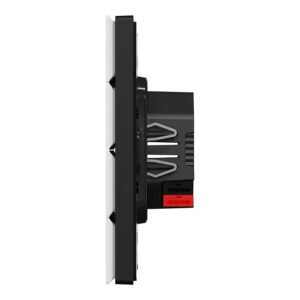

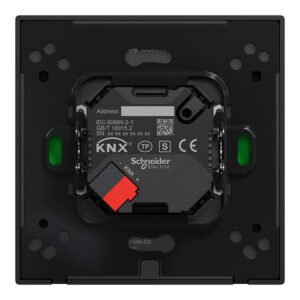

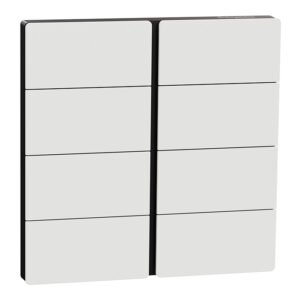

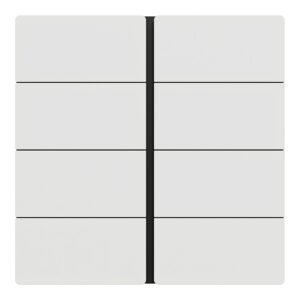

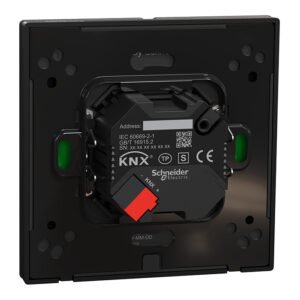

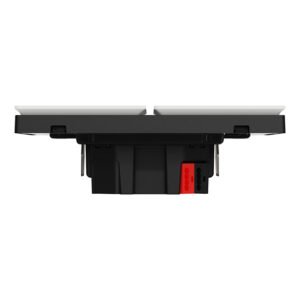

C2E616401_WE_C1 Schneider Push-button, 8-gang, white, Cuadro H
Cuadro H KNX push-btn is programmable, with integrated bus connedting unil. The device is cannected to the bus line with a bus coupling unit. You can commission different functions for each button, eg.switching.blind or scene retrieval.The lcons are changeable per diffe ent mquirements.
C2E616401_WE_C1 Schneider Push-button KNX software functions:
2 programming options:
■ Express settings: Calls up a pre-set configuration
■ Extended settings: Individual configuration
Express settings: Button type (pc, glass, metall) and number of buttons, switching, toggling, dimming (single/dual-surface), blind (single/dual-surface), scenes.
Extended settings: Switching, dimming, value output, scene control (recall/store a scene), blind, loop operation (stepwise, without steps), RGB lighting (RGB, RGBW), multiple operation in which you can define various functions manually (4 objects – on/off, up/down, recall scene, store scene, percentatge, unsigned value), delay mode, color temperature control. For all function a distinction can be made between short and long operation.
General: Scene group, logic function (AND; OR, XOR, threshold comparator, format converter), indication behaviors, locking function.
C2E616401_WE_C1 Schneider Push-button, 8-gang, white, Cuadro H
Push-button with 6 operating buttons and status indicators. In idle state, the surface of the push-button appears as a uniform plane. LEDs show status, the brightness can be defined according to normal and night mode.
C2E616401_WE_C1 Schneider Push-button ETS device functions:
■ Brightness of LED with status ON in normal mode/night mode, selection of the LEDs to be used in night mode.
■ Night mode: LEDs light up with reduced brightness.
■ Proximity function: The LEDs are only activated and the functions only become visible when approached. Adjustable proximity sensitivity for normal/night mode.
C2E616401_WE_C1 Schneider KNX 8 push-button Specifications
Bus type : KNX
Main colour tint : White
Range of product : Cuadro H
Product or component type : Push-button
Complementary
Material : PC
Colour tint : White
Local signalling : LED
Rated current：15 mA
Surface processing：Bright
Number of Function keys : 8
Surface treatment：Unpainted
Control type：Proximity function
Power supply：KNX Port: DC 21-30V
apprax.24V/ 15 mA
Environment
IK grade : IK05
IP protection rating : IP 20
Installation altitude : ≤2000m
Storage temperature ：-20 °C – +60 °C
Operating temperature ：-10 °C – +45 °C
Product dimensions : WxHxD:86x86x29mm
Relative humidity: 10% – 93% no condensation
Package
Package 1 Height : 3.0 cm
Package 1 Width : 8.6 cm
Package 1 Length : 8.6 cm
Package 1 Weight : 150.7 g
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
